FK COM Series Spherical Bearings
FK COM Series Spherical Bearings
FK Bearings

FK COM Series Spherical Bearings

$6.79 $8.00

 Commerical Series FK Spherical Bearings:

Ball made from 52100 Steel, Heat Treated, and Hard Chrome Plated

Race made from Low Carbon Steel and is oil coated,  PTFE Lined

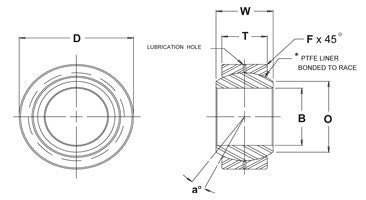

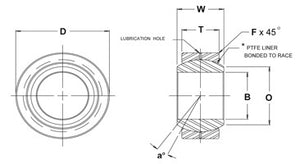

BEARING
PART
NO.
B
DIA.
D
DIA.
W
WIDTH
T
WIDTH
O
DIA.
BALL
DIA.
F
CHAMFER
a°
MIS
ANG.
ULT.
STATIC
RADIAL
LOAD (lbs.)
APPROX.
WEIGHT
(lbs.)
+.0015 -.0005
+.0000 -.0007
+.005 -.005
+.005 -.005
REF.
REF.
REF.
REF.
COM3
.1900
.5625
.281
.218
.293
.406
.015
11
3,250
.014
COM4
.2500
.6562
.343
.250
.364
.500
.022
13.5
4,950
.022
COM5
.3125
.7500
.375
.281
.419
.562
.032
12
6,475
.030
COM6
.3750
.8125
.406
.312
.516
.656
.032
10
8,400
.038
COM7
.4375
.9062
.437
.343
.530
.687
.032
8
9,453
.047
COM8
.5000
1.0000
.500
.390
.600
.781
.032
9.5
13,250
.065
COM8-101
.5000
1.0000
1.000
.390
.600
.781
.032
9.5
13,250
.065
COM9
.5625
1.0937
.562
.437
.671
.875
.032
9.5
16,630
.086
COM10
.6250
1.1875
.625
.500
.739
.968
.032
8.5
21,280
.110
COM12
.7500
1.4375
.750
.593
.920
1.187
.044
9
31,920
.204
COM12T-3R**
.7500
1.4375
.750
.593
.920
1.187
.044
9
31.920
.204
COM14
.8750
1.5625
.875
.703
.980
1.312
.044
9.5
41,960
.263
COM16
1.0000
1.7500
1.000
.797
1.118
1.500
.044
10
55,200
.386
COMH16***
1.0000
2.0000
1.000
.781
1.360
1.687
.032
9
70,820
.553
COMH19***
1.1875
2.3750
1.187
.937
1.610
2.000
.032
8.5
100,730
.895
COMH20***
1.2500
2.3750
1.187
.937
1.610
2.000
.032
8.5
100,730
.895
COMH24***
1.5000
2.7500
1.375
1.094
1.860
2.312
.032
8.5
135,950
1.358
COMH28***
1.7500
3.1250
1.562
1.250
2.110
2.625
.044
8
176,370
1.948
COMH32***
2.0000
3.5000
1.750
1.375
2.360
2.937
.044
8.5
217,060
2.650
