240 Extended Wheel Studs
240 Extended Wheel Studs
Kaplhenke Racing

240 Extended Wheel Studs

$50.00 $0.00

Features:

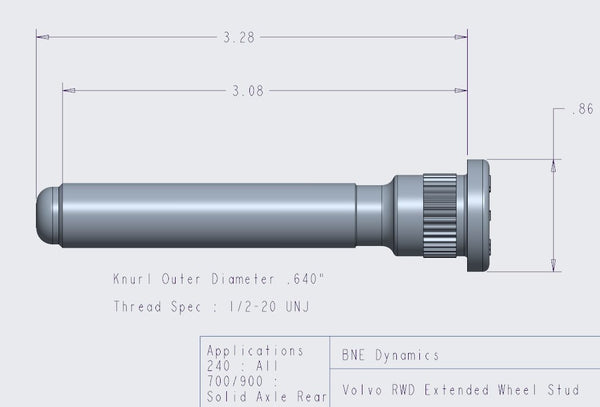

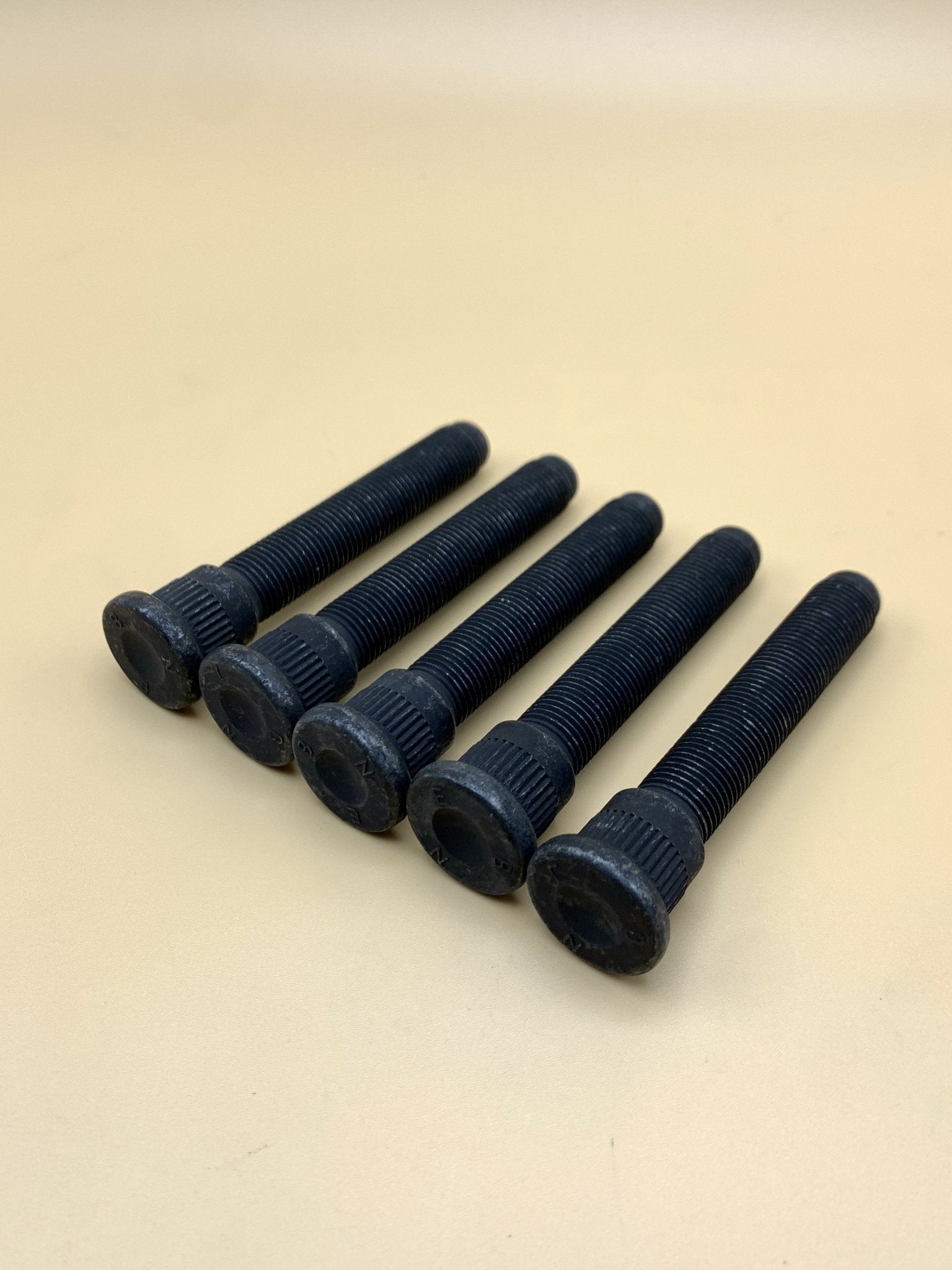

240 Extended Wheel Studs

  • Studs length suitable for up to ~40* mm of wheel spacer
  • Correct Knurl and Brake Hat Shoulder Diameter to be a bolt-in factory replacement
  • A ball-end quick start helps ensure a positive non-cross threaded engagement.
  • Makes wheel spacer and offset changes faster and less cumbersome than adapter style parts.
  • Cold-formed from 8740 alloy steel.
  • 1/2-20 UNJ profile threads that feature a fully radiused thread root for increased strength.
  • Magni-Coat 575 Corrosion Protection.
  • Threads Rolled after heat treatment for improved fatigue life.
  • 180,000 PSI Tensile Strength
  • Made in the USA

 (*this may vary due to the thickness of different wheels and lug nut designs, always verify proper thread engagement before installation of wheel spacers and extended studs)



    Comparison:

     Products

     Kaplhenke Wheel Spacers & Extended Wheel Studs

    Generic Wheel Adapters

    Weight

    		 Our pocketed wheel spacers are lighter Wheel adapters are heavier and contain more metal

    Strength

    		 High strength steel studs pressed into the factory steel hub Wheel Studs pressed into an aluminum spacer

    Reliability

    		 5 Lug nuts & studs / corner w/ ease of checking tightening torque

    10 Lug nuts & studs / corner w/ only half being able to be easily checked for fastening torque.   Studs pressed into aluminum.

    Easy of Change

    		 Initial installation requires pressing in of studs but every other time a wheel spacer is changed it can be done in seconds. Faster initial installation but requires 2x the work to change wheel spacers every time a wheel adapters are changed.
